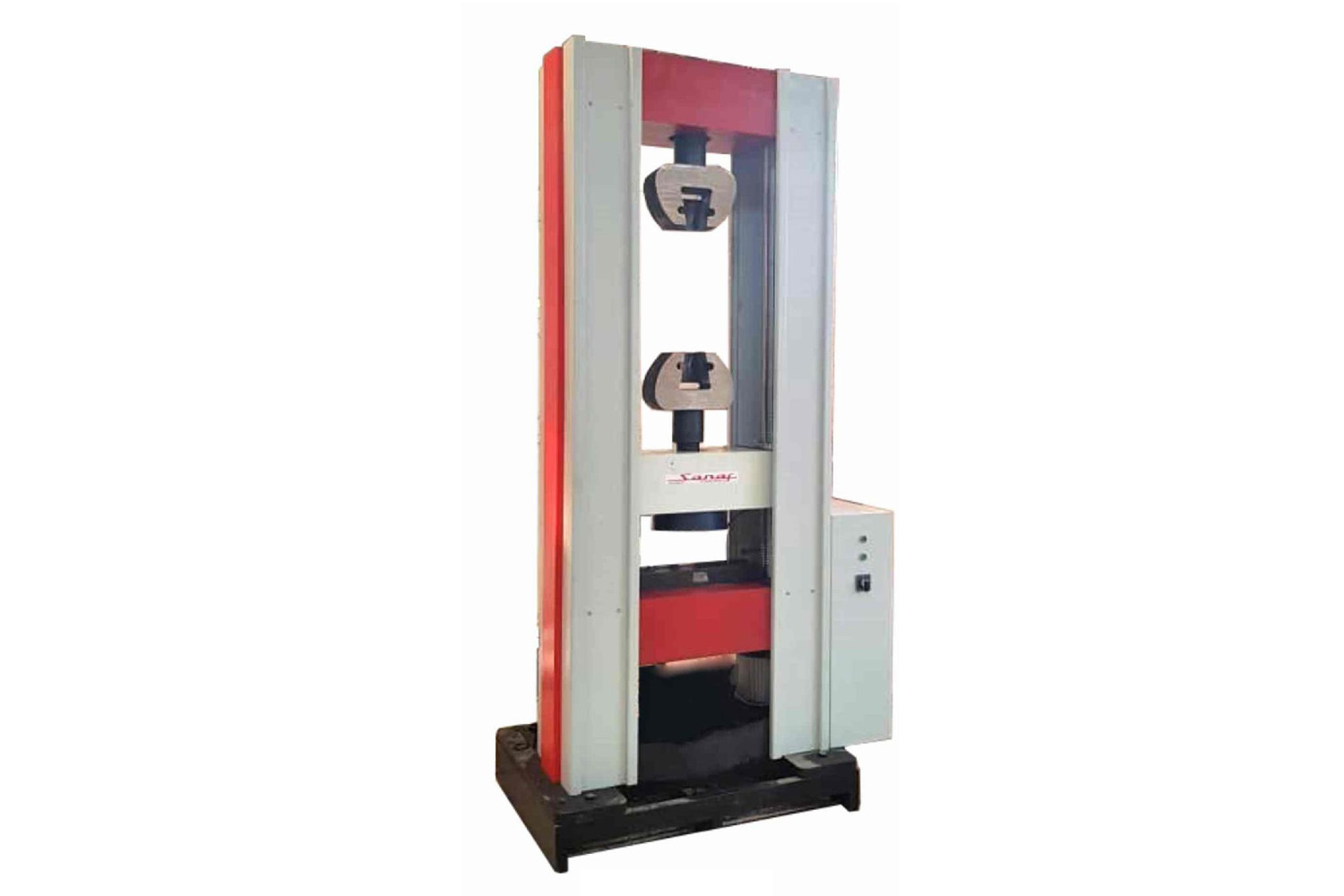

SUT-200

Universal Tensile Tester

Model: SUT-200

  • Capacity 20 tons
  • With the ability to perform various tests for metals, rebars, belts, all kinds of rubbers, plastics, composites, industrial parts, etc
  • With the ability to perform tensile tests – Bending – Compression – Compression – Peeling – Tear – Relaxation – Creep – In accordance with international standards
  • With the ability to install a variety of jaws and fixtures in the form of pin displacement
  • With the ability to install various extonometers and furnaces
  • Ability to install a variety of load cells with low capacity to increase measurement accuracy
  • System operation as servo-electric
  • Load cell force sensor
  • Has a servo brand
  • Full computer device control via USB RS 232 serial port without PC type restrictions
  • Has high resolution

Softwarefeatures

  • Stress and strain diagram at yield point
  • Maximum elongation at break point
  • Control of speed, position, force and strain
  • Ability to print, store and retrieve information and draw graphs
  • Automatic storage and printing of test results
  • Equipped with software load calibration system extensometer
  • Full implementation of the standard
