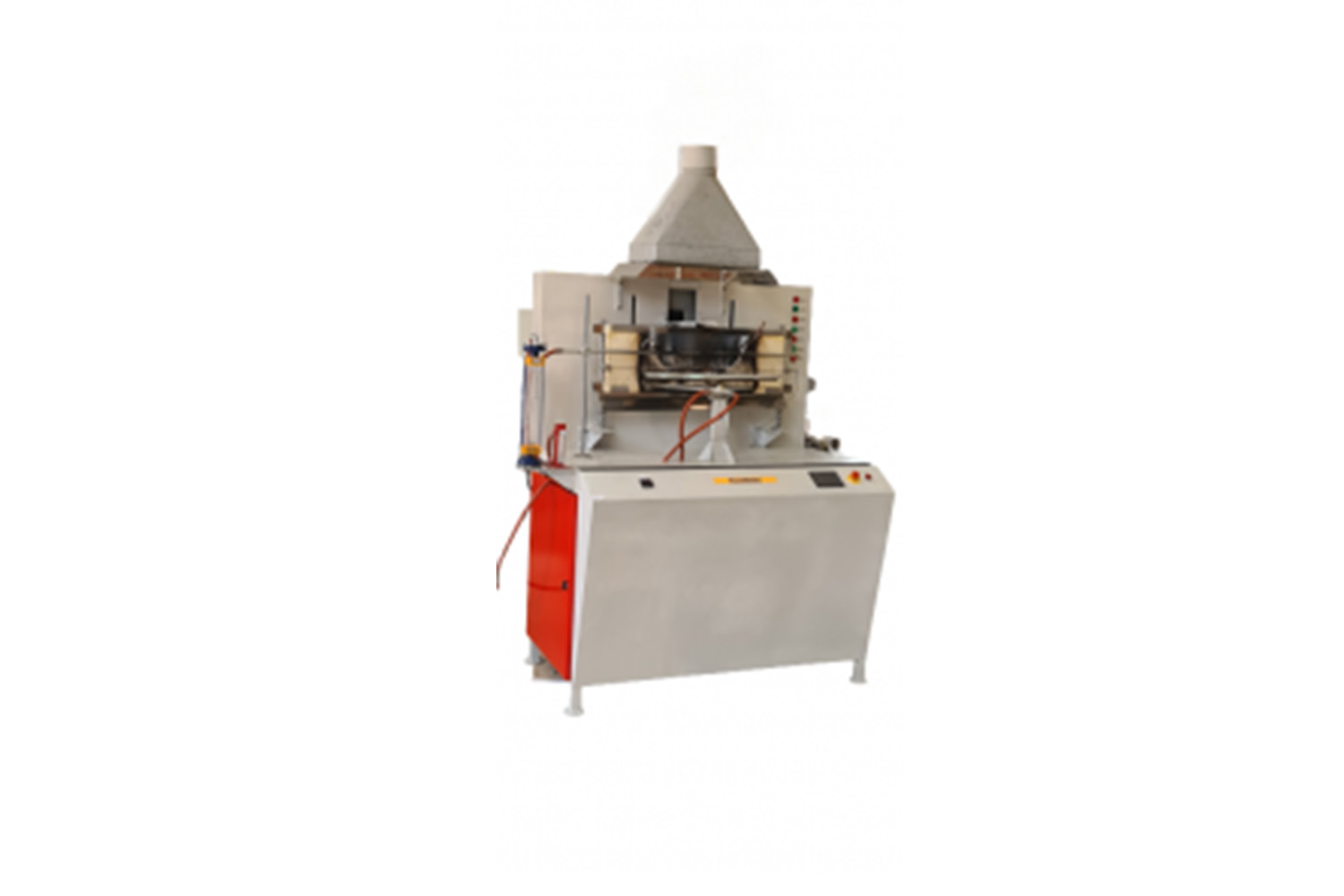

FLAME THERMAL STABILITY STANDARD TEST

Flame Thermal Stability Test Meets Standard

Flow stability test in flame

• Ignition gas: propane , oxygen
• With propane flow control accuracy: (2±5)l / min
• Flow meter to control the flow of incoming air with accuracy: (4±80)l / min
• Flame length 600mm to 620mm
• Torch length: 50cm
• Torch angle: vertically to length (65±10mm)
• Has a bump with a weight of 10N
• Cable holder
• Ability to control flame or temperature in steppes 650 °C, 750°C, 950°C
• Has a flame and flame disconnection system
• Spring water spraying system according to EN8491 standard
• Ability to set temperature at any moment
• Ability to record cable voltage and current
• Connectivity to computer system
